Systems for aircraft requiring 15 and25 inch bridge spacing
Rental Intercomp AC30-60™ Scale System by Jackson Aircraft Weighing Systems, the world leader in scale rentals.
Modular High-Capacity Aircraft Weighing System

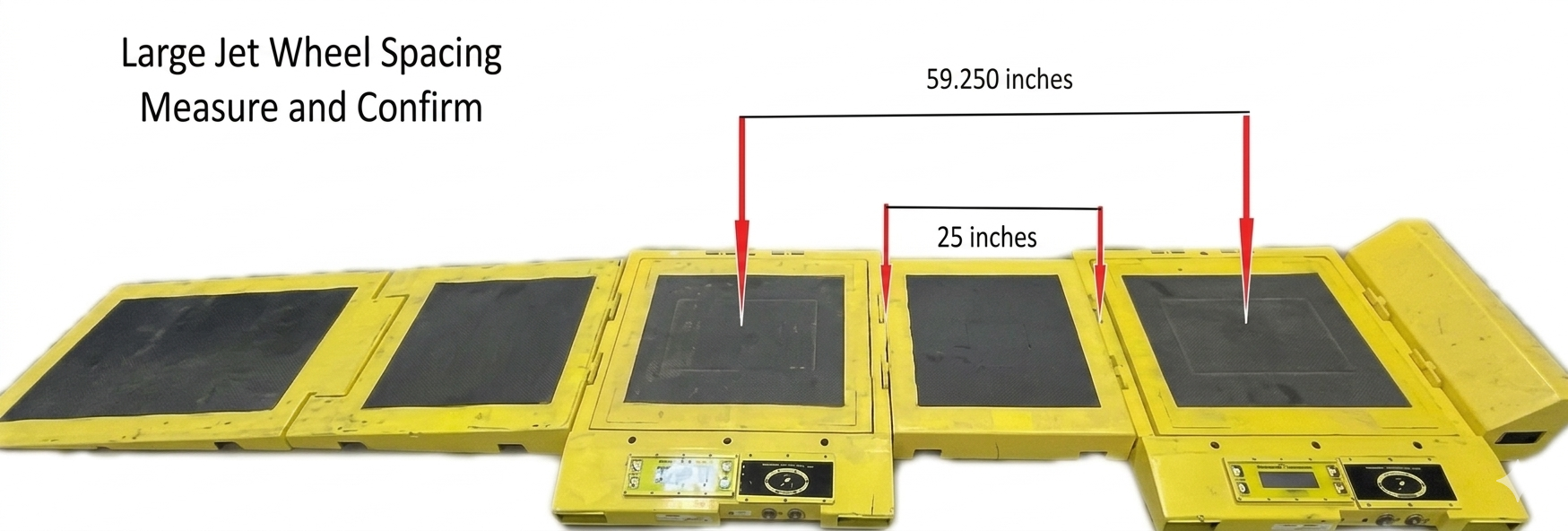

This technical guide illustrates the measurement and confirmation protocol for Large Jet Wheel Spacing using the Intercomp AC30-60™ modular weighing system. This high-capacity system is available for rental and lease for your demanding aviation weighing requirements.
Wheel Spacing
Center-to-Center: 59.250 inches
Ensures accurate load distribution scale center to center.
Spacer Module
Module Width: 25 inches
Intermediate bridge designed to maintain the proper distance between scales.
System Type
Model: AC30-60 High-Capacity

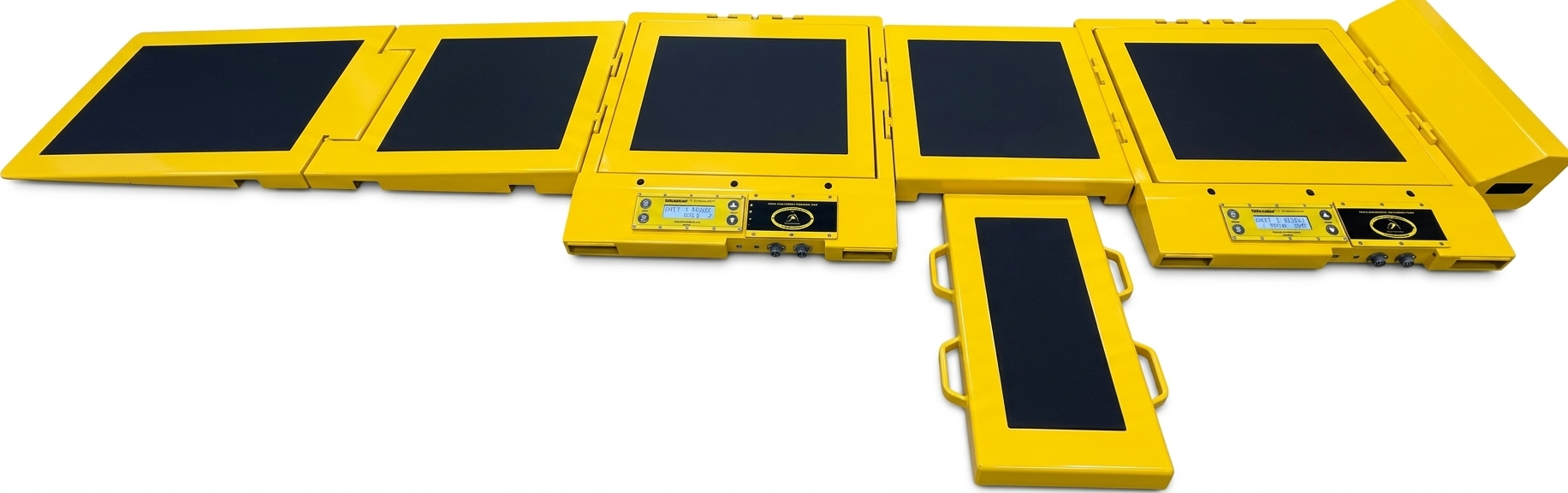

Modular design for heavy transport and commercial aircraft can be configured with different bridge spacers.
Large bridge 25 inches |
|

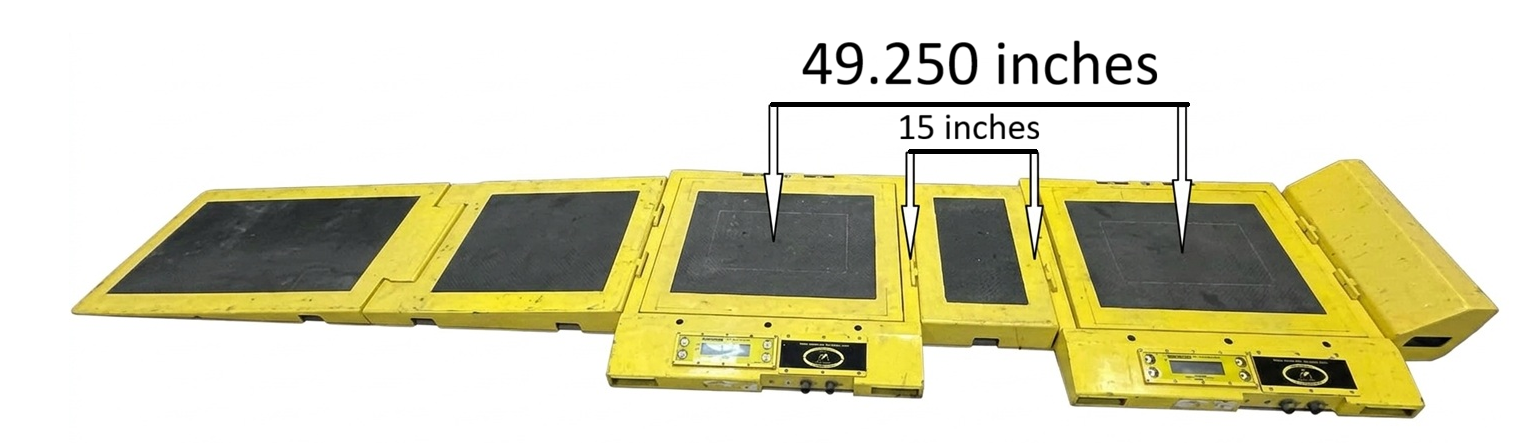

Short bridge 15 inches |
|
Professional Transport Solutions
We prioritize the safe and efficient delivery of your precision weighing systems. Depending on your facility's requirements and logistical needs, we offer two distinct transport options:
-

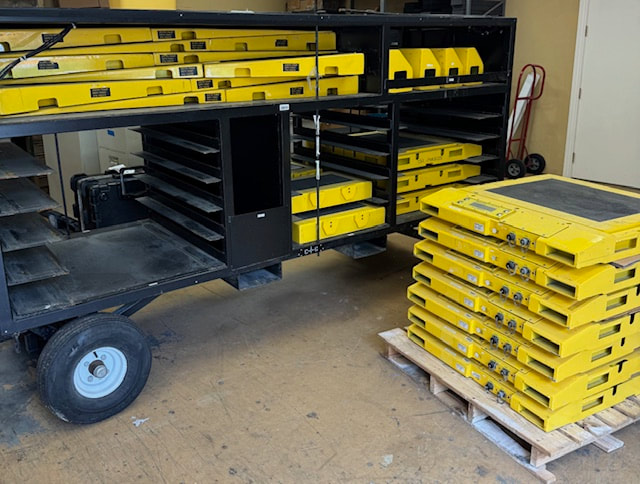

Option 1: Original Transport Cart
Receive your complete system on its dedicated, high-mobility cart. This option requires enclosed shipping via freight movement to ensure the scales are fully protected from the elements. Please be advised that this method will increase overall shipping costs due to the additional weight and dimensions of the transport cart.
-

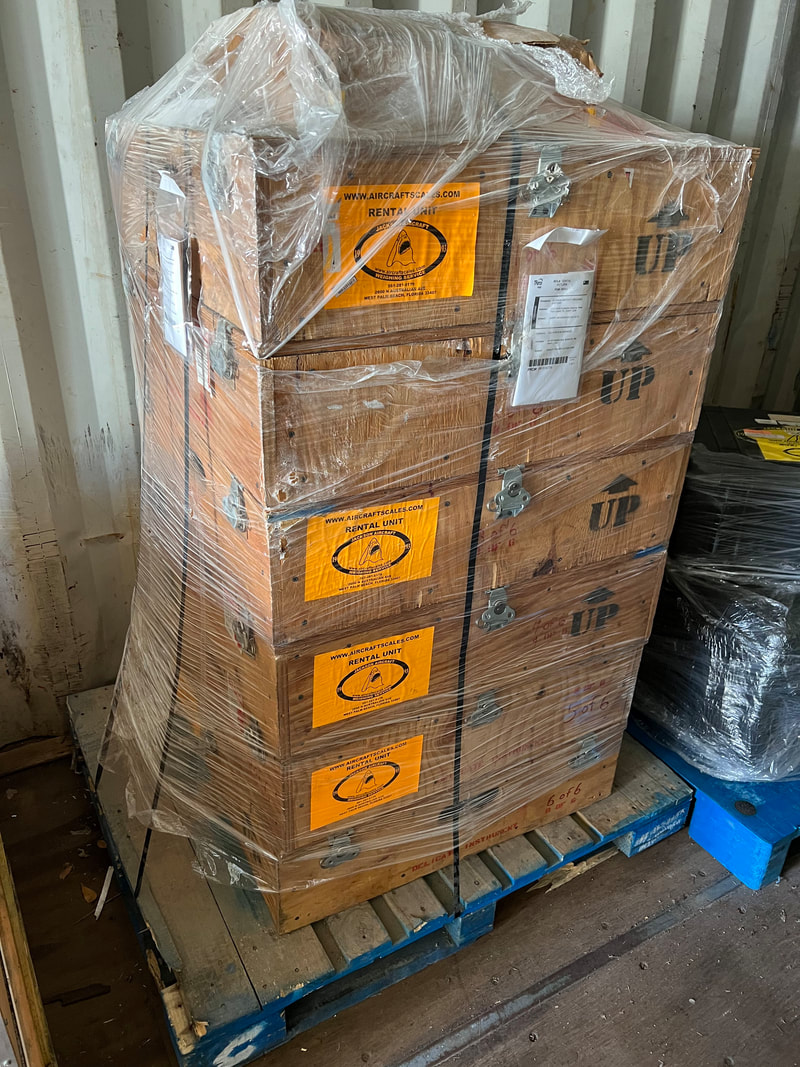

Option 2: Heat-Treated Wooden Crates
For long-distance shipping or long-term storage, we offer secure delivery in heat-treated wooden crates. Depending on your specific system configuration, this typically consists of 2 to 3 pallets. This option also requires freight movement due to the total system weight, but offers a more compact and rugged shipping profile.
Next Steps: Please specify your preferred delivery method so we can provide an accurate freight quote and lead time for your location.
